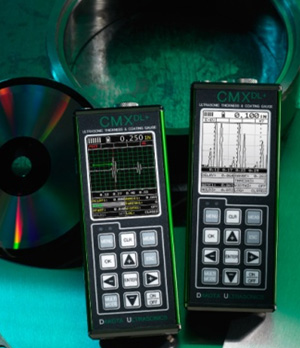

The CMX DL+ has all features of the MX & MMX gauges with a ton of advanced features. Measure material and coating thickness simultaneously, while still detecting pits & flaws in a single mode (PECT). It also has a full featured A-Scan presentation with RF and Rectified viewing options.
The CMX DL+ is equipped with 3 fully adjustable gates (start, stop, width, & Threshold). Equipped with a 20dB boost/cut attenuator, which offers added flexibility for transducer types and applications. Selectable 50 volt pulser boost or cut (100 – 200 volts). Our DakView java-based PC or MAC OSX software makes this kit truly the Cadillac of the CMX series.
Download BrochureKey Features
| Case: |
Extruded aluminum body / nickel plated aluminum end caps Resistant to impact and environmentally sealed. |
|---|---|
| Keypad: |
Sealed membrane that is resistant to both water and petroleum products. Twelve tactile-feedback keys. |
| Transducer: |
Dual elements (transmit and receive). 1 to 10 MHz frequency range. Flaw Prove Up (1 to 10 MHz) Locking quick disconnect Lemo connectors. 4 foot cable. Custom transducers available for special applications |
| Power Source: |
Three 1.5V alkaline or 1.2V NiCad AA cells. For Alkaline: grayscale up to 50 hours, colour up to 25 hours. For Nicad: grayscale up to 25 hours, colour up to 12 hours. |
| Display: |
Large Digits – Standard thickness view. Digit Height: 0.700 in (17.78 mm). Color 0.565 in (14.35 mm). A-Scan – Rectified +/- (flaw view) RF (full waveform view). B-Scan – Time based cross section view. Adjustable display speed. Scan Bar Thickness – 6 readings per second. Viewable in B-Scan and Large Digit views. Repeatability Bar Graph – Bar graph indicates stability of reading. Feature Status Bar – Indicates features currently active. |
| Operating Temperature: | 14 to 140F (-10C to 60C) |
| Measuring range: |
Pulse Echo Mode(P-E) - Measures from 0.025 to 19.999 inches (0.63 to 500 millimeters) Pulse Echo Coating Mode(PECT) – Measures from 0.025 to 19.999 inches (0.63 to 500 millimeters). Coating 0.001 to 0.100 inches (0.01 to 2.54 milimeters). Pulse Echo Temp Comp Mode(PETP) – Auto temperature compensation -measures from 0.025 to 19.999 inches (0.63 to 508 millimeters). Echo Echo Mode(E-E) – Measures from 0.050 to 4.0 inches (1.27 to 102 milimeters) Echo Echo Verify(E-EV) – (Thru Paint & Coatings) measures from 0.050 to 1.0 inches (1.27 to 25.4 millimeters). Will vary based on coating. Coating Only Mode(CT) – (Coating Thickness) Measures from 0.0005 to 0.100 inches (0.0127 to 2.54 millimeters). Range will vary +/- depending on the coating. |
| Resolution: | 0.001 inch (0.01 millimeter) |
| Velocity Range: | 0492 to .5510 in/m s. 1250 to 13,995 meters/sec |
| Warranty: | 2 years limited |
Applications
- Corrosion & Pitting
- Boilers
- Tube & Pipe
- Glass
- Tanks
- Variety of Applications
