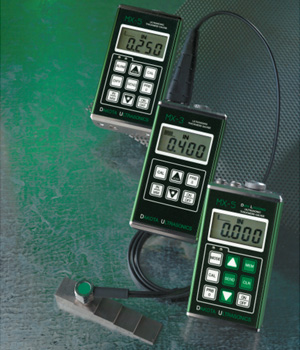

With the hand held MX-3 Ultrasonic micrometer, you can make reliable measurements or scan a length of material for the thinnest point. The tool’s backlit display is easy to read, even in dim light, and the unit operates for up to 200 hours on a single set of batteries. The MX-3 comes complete, ready to use and is protected by Dakota Ultrasonics 5 year limited warranty.
Download BrochureKey Features
| Case: | Extruded aluminum body / nickel plated aluminum end caps. Resistant to impact and environmentally sealed. |
|---|---|
| Keypad: | Sealed membrane that is resistant to both water and petroleum products. Six tactile-feedback keys. |
| Transducer: |
Dual elements (transmit and receive). 1 to 10 MHz frequency range. Locking quick disconnect Lemo connectors. 4 foot cable. Custom transducers available for special applications |
| Power Source: |
Two 1.5V alkaline or 1.2V NiCad AA cells. Typically operates for 200 hours on alkaline and 130 hours on NiCad. |
| Display: |
Multi-function 4.5 digit liquid crystal display with 0.500 inch numerals, backlit for use in poor light conditions. Bar graph indicates stability or reading. |
| Measuring range: | Measures from 0.025 to 19.999 inches (0.63 to 500 millimeters) |
| Resolution: | 0.001 inch (0.01 millimeter) |
| Velocity Range: | 0492 to .3937 in/m s. 1250 to 10,000 meters/sec |
| Warranty: | 5 years limited |
Applications
- Corrosion & Pitting
- Boilers
- Tube & Pipe
- Glass
- Tanks
- Variety of Applications
