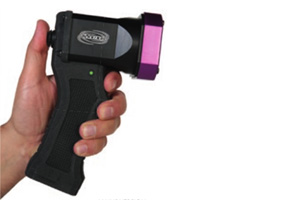

MidBeam 2.0 is an extremely robust hand held lamp with four LEDs in a housing diameter of just 8 cm (3.15 inches), especially designed for heavy industries with very difficult operating environments. The MidBeam 2.0 is available in two different versions, Zeus and Hermes (compliance with ASTM E3022-15 & RRES 90061).

Midbeam 2.0 Zeus
The Zeus version generates an intensity of approximately 5 000 μw/cm at 38 cm (15 inches) and is equipped with a white light LED for after inspection. Battery running time is two hours.

Midbeam 2.0 Hermes
The Midbeam 2.0 Hermes differs from the standard version as follows:

A. The Hermes version does not have a white light LED for after inspection.
B. The intensity of the Hermes version is adjusted to never exceed 4 000 μw/cm at 38 cm (15 inches).
C. The battery running time of the Hermes version is in excess of two hours.
The optics of this unit are specifically designed to meet the Rolls-Royce engineering specification RRES 90061.

Download Brochure

Key Features

  • IP68 Waterproof classification: Solids and liquids that often find their way into a light causing UV LEDs to burn cannot penetrate a Midbeam 2.0 unit.
  • Battery indicator: Four colors: green, yellow, orange and red – signal the user when the batteries are over 75%, 50-75%, 25-50% and below 25% charged respectively. With less than 10% left the red signal starts flashing.
  • Operates while charging batteries: The battery version can operate like mains while charging the batteries via a connector at the back of the head.
  • Aerosol spray accessory ”Athena” is an innovative accessory that is mounted on MidBeam 2.0 and allows the NDT Inspector to operate the spray can simultaneously with a strong UV light that is compliant with ASTM E3022. The light and compact characteristics of MidBeam 2.0 make this possible.
  • Flexible length: Cable for mains is equipped with connectors for easy replacement and fl exible length.
  • Clear glass protection filter.
