Established in 1983, Phoenix Inspection Systems are specialists in design and manufacture of ultrasonic non-destructive testing (NDT) solutions serving a wide range of industry sectors including nuclear and power generation, offshore oil, gas and petrochemical, aerospace, composites and rail. The products take into account the full range of ultrasonic NDT techniques, including phased array, corrosion mapping, pulse echo and TOFD and are built to the internationally recognised Quality Management Systems standard ISO 9001:2008.

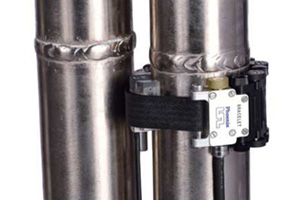

The Bracelet is an extremely low profile scanner suitable for phased array weld inspection of small bore pipes of any material. It is only 13mm in height and is available in single transducer or dual transducer configurations. This lightweight and low-profile scanner is extremely simple to set up and use for weld testing on pipe sizes from 0.5” to 4”.

The Bracelet scanner has a radial height from the pipe surface of only 13mm and can be fed around the pipe past neighbouring obstructions to provide 360°inspection when only half the pipe is accessible. The scanner incorporates a miniature encoder so the data can be recorded referenced to its location around the pipe.

Download Brochure

Key Features

  • Holds single or dual phased array probe configurations
  • Scans pipes ranging from 0.5” to 4” NPS
  • Clearance envelope of 13mm
  • Rubber wheels provide smooth circumferential movement around pipe
  • Probes and wedges are easily inter-changeable
  • Miniature splash-proof encoder provides 38 quad counts/mm
  • Compatible with industry standard phased array probes and flaw detectors
