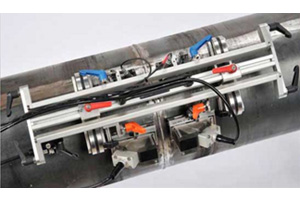

The MultiMag is a compact scanner suitable for circumferential weld testing of steel pipes. It features magnetic wheels that can be repositioned along the scanner frame, can hold up to four transducers (phased array, TOFD, single element), and incorporates compliance in the wheels to assist when inspecting misaligned welds.

The MultiMag has large magnetic wheels that provide a stable platform and a smooth rolling motion. The frame includes angular adjustment to enable the scanner to be used on small diameter pipes. It can be used to test welds on pipes from 3” up to flat plate.

Download Brochure

Key Features

  • Holds up to 4 probes
  • Pivoting arms to optimize probe contact
  • Tool-posts are independently sprung and gimballed
  • Wheel brackets tilt to assist with misaligned welds
  • Quick release handles allow easy movement of wheels, tool-post and encoder positions
  • Operates in any orientation from 3” O/D up to flat plate
  • No need for adjustment tools due to quick release handles on all moveable parts
  • Positional encoder output
  • Robust modular construction for practicality on site
  • Large PCS version available
  • For use with any manufacturers probes, wedges and instrumentation
