Technology Design specialises in the design, development and manufacture of state-of-the-art Ultrasonic data acquisition systems. It also combine Phased Array, ToFD and Pulse Echo into a convenient and powerful range of instruments. These are designed to suit the widest spread of applications and are supplied worldwide.

Multi-Function Ultrasonic Inspection Systems.

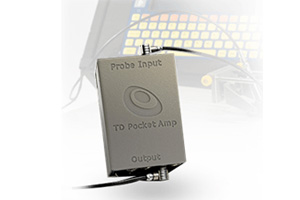

The battery powered multi-channel UT pre-amplifier is a compact, pocket sized, 4 channel unit achieving in excess of 70 hours of continuous use on a 9v (1 x PP3) battery.

Download Brochure

Key Features

Number of Channels: 4
Input Impedance: 50 Ohms
Output Impedance: 50 Ohms
Gain: 20dB (40dB available)
Noise Performance: 1.2nV/(Hz)1/2(typical)
AC Coupled: Input and Output
Overvoltage Protection: Input and Output
Bandwidth: 25MHz @ 20dB gain
Input Signal range: 100mV (20dB)
Output Signal range: 1Vpp
