Technology Design specialises in the design, development and manufacture of state-of-the-art Ultrasonic data acquisition systems. It also combine Phased Array, ToFD and Pulse Echo into a convenient and powerful range of instruments. These are designed to suit the widest spread of applications and are supplied worldwide.

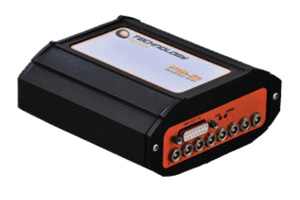

The PS45 is a natural progression of our hugely successful TD Pocket-Scan from the PCMCIA communication mechanism to Ethernet.

The Ethernet connection simplifies the link between laptop and Pocket-Scan and eliminates the need for a PCMCIA type II card slot. The Ethernet system requires minimal initial setup with no special drivers and will communicate with any Ethernet enabled PC.

Download Brochure

Key Features

  • Portable yet Highly Capable
  • Ethernet Link - PS45 to Laptop
  • Extensive Off-line Analysis Tools
  • Built-in Reporting
  • 2 Axis Encoder & Video Tracking
  • Up to x32 Conventional Channels

Techniques

  • TOFD
  • Pulse Echo
  • Corrosion Mapping
  • Weld Zone Discrimination

Applications

  • Pressure Vessels Welds
  • Pipeline Welds
  • Corrosion Surveys
  • Turbine Disks & Blades
  • Complex Geometries
  • Forgings & Castings
  • Aircraft Components
  • Hydrogen Damage Surveys
