Zetec Topaz 64 Phased Array UT (PAUT)

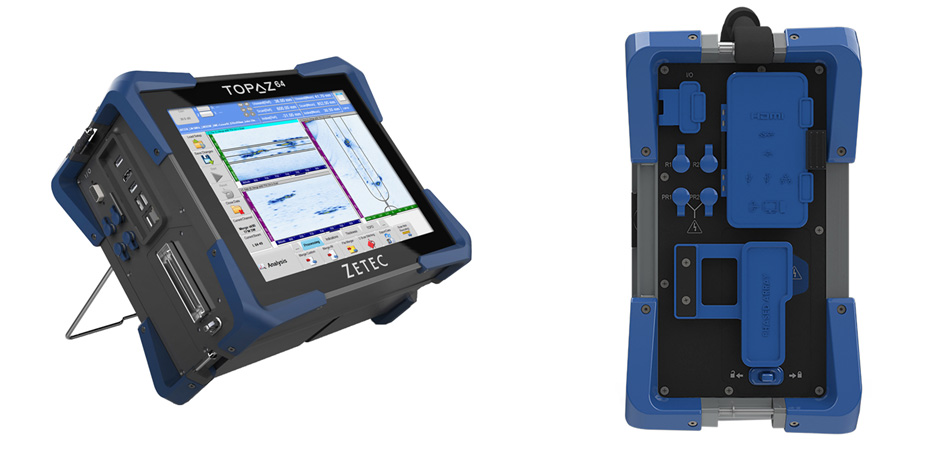

Introducing TOPAZ64, a fully integrated, portable 64 channel Phased Array UT (PAUT) device delivering faster, more reliable inspections. It intelligently combines the power of 64 active channels for PAUT applications with the industry’s most advanced Full Matrix Capture (FMC) and Total Focusing Method (TFM) capabilities. TOPAZ64 is ideal for challenging applications in Oil & Gas, Power Generation, Manufacturing and Transportation. Whether you are inspecting complex composite materials or thick welds, TOPAZ64 delivers better coverage and accuracy.

Download Brochure

Key Features

  • Code Compliant 64/128PR Phased Array UT
  • High Resolution Full Matrix Capture (FMC)
  • Total Focusing Method (TFM) up to 1M Data Points per Frame
  • Time of Flight Diffraction (TOFD)Features a tilting, color touchscreen to empower viewing from multiple angles
  • Experience the Power. 64/128PR phased array configuration and 2 separate conventional UT channels at 200 V
  • Higher Resolution, Better Performance. Best-in-class “live” TFM resolution delivering 65k points frame, up to 110 Hz
  • Save Time and Money. Save raw A-Scan data for record-keeping compliance or TFM post-processing without the need to rescan.
