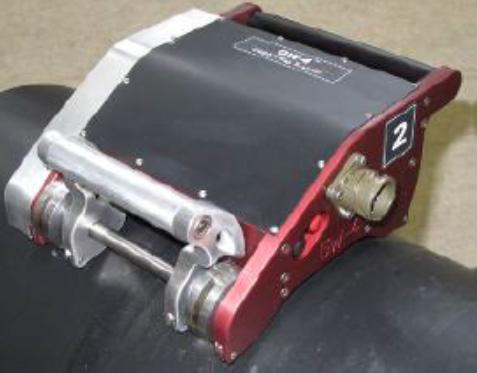

SENTINEL Pipeline Girth Weld Scanner (GW-4)

The SENTINEL GW-4 is an automated digital X-ray scanner for inspecting pipeline or vessel weldments during new construction with live result on desktop.

Using the latest CMOS X-ray imaging technology, the GW-4 scanner can complete a 3 inch wide, high resolution scan of a 24 inch pipeline in one to two minutes depending on pipe wall thickness. On larger pipe, two or three scanners are run simultaneously.

Download Brochure

The system is sturdy, compact, lightweight and easily deployed on the pipeline by one person. Using a unique magnet drive system, the GW-4 can be mounted to the pipeline, ready to scan, in 30 seconds.

The GW-4′s integrated controller handles the scanning tasks, while the operator’s portable workstation captures the inspection, allowing instant analysis and digital storage of the inspected weld.

Key Features

  • Suitable for steel pipe size from size 12″ and larger.
  • High image resolution at 80 microns (.003″)
  • Instant result with LIVE scrolling on desktop.
  • Sensitivity from 2-2T or better
  • X-ray requirements :Constant potential X-ray from 20Kv to 450Kv
  • Scan speed up to 1.6 seconds per inch , depending on resolution requirements and material thickness
  • image file size at 150KB/, i.e 4 Mbytes for 3″ wide scan of 12″ length.
  • Workstation 3.0 GHz industrial PC or rack-mount workstation, 2 GB RAM, dual redundant 250 GB hard drives, CD-RW, DVD-R, 24″ TFT LCD 1280×1024 400 NITS Flat panel display
  • Powerful software package including x-ray image acquisition/ enhancement/ measurement, scan manipulation, and image storage/ export. Real-time image scrolling feature
  • Power with 110-220 volts, 50-60 Hz, 120 watts total for workstation and scanner, operates on 12V battery with sine-wave inverter
  • Durable field case provided for storage of the scanner and cable. Optional cases for computer system available
