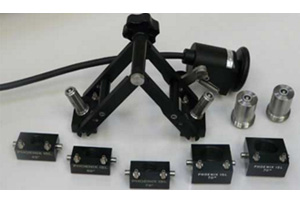

The TOFD Caliper is a simple, pocket-sized scanner for TOFD inspection of welds of any material. It holds a single pair of transducers, an encoder and enables the separation to be quickly adjusted using a single thumb screw.

The TOFD Caliper operates in any orientation on surfaces from 3” pipe up to flat plate, suitable for inspecting welds on pipework, pressure vessels, storage tanks and structural components.

Download Brochure

Key Features

  • Positionally encoded via spring loaded/friction drive jockey wheel
  • Fully adjustable probe centre separation (PCS) from 28mm to 160mm
  • Quick release tandem probe attachment via gimbaled holders
  • Contact or gap scan operation
  • Operates in any orientation and on surface from flat down to 75mm O/D
  • 'Plug in and go’ design
  • Accurate tracking by virtue of ‘easy steer’ motion
  • For use with any manufacturers probes, wedges and instrumentation
